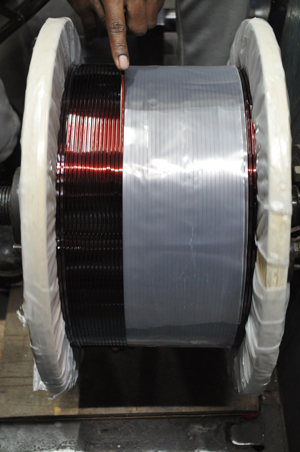

Enamel Insulated Conductor Strips
Enamel insulated rectangular conductor in various thermal class ranges.
Specification
IS 13730 or IEC 60317 or Customer Specification
Dimension Range
• Cross-sectional range: 4 mm2 to 75 mm2
• Width: 3 to 20 mm
• Thickness: 1 to 5 mm
Insulation Class
| Type | Thermal Class | Specification |
|---|---|---|
| Polyester | 155°C | IS 13730 – 16 / IEC 60317 – 16 |
| Polyesterimide | 180°C | IS 13730 – 28 / IEC 60317 – 28 |
| Polyesterimide + Polyamideimide | 200°C | IS 13730 – 29 / IEC 60317 – 29 |
